Quick Answer: What Are Roof Battens and Why Do They Matter?

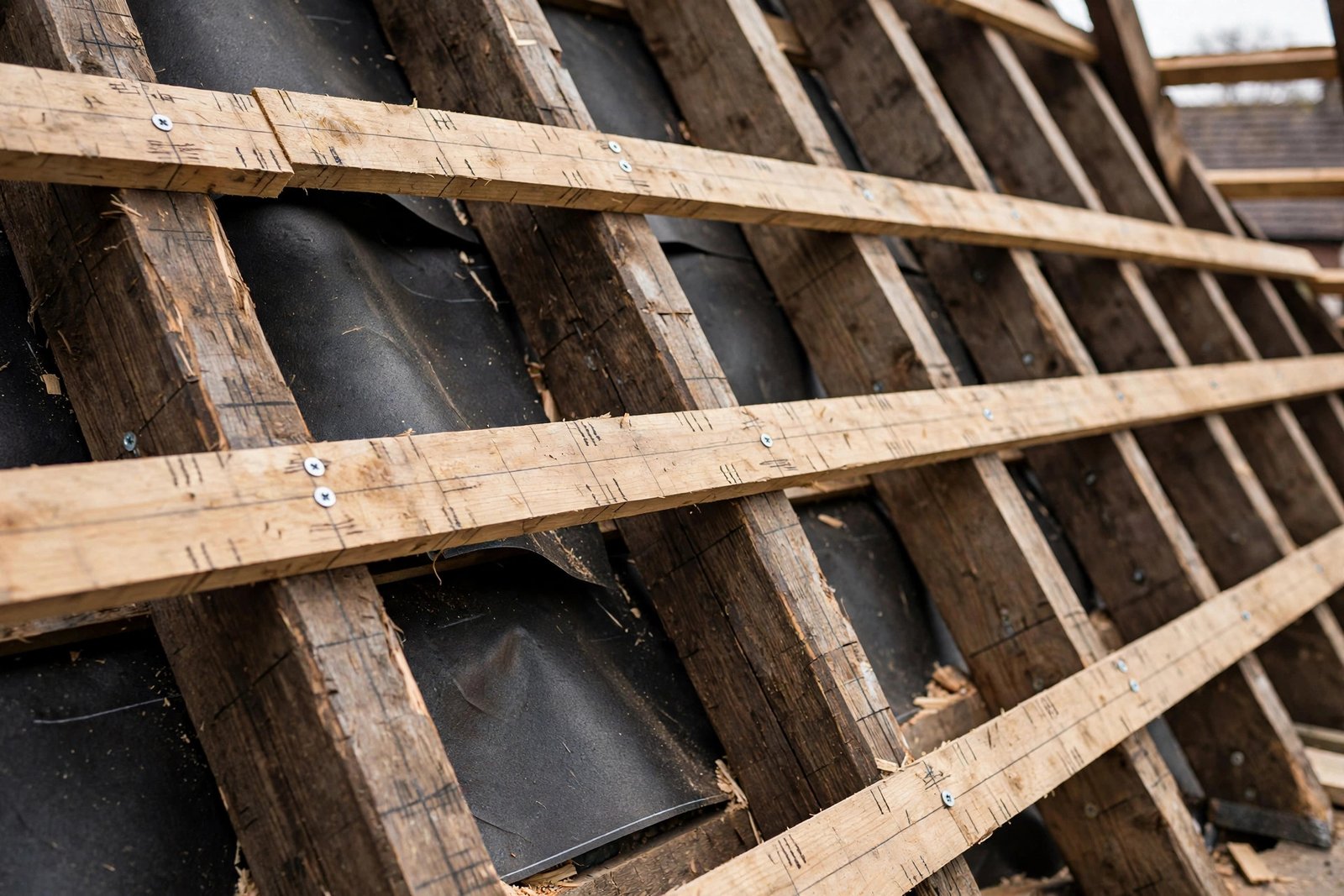

Roof battens are the horizontal timber or composite strips fixed across the roof rafters that roof tiles or slates are hung from. They transfer the weight of the roof covering down to the structural timbers, create the correct spacing for each tile course, and provide a fixing point that keeps the whole roof covering secure against wind uplift.
What Are Roof Battens Made From?
Traditional roof battens are pressure treated softwood timber, graded and sized specifically for roofing use rather than general construction. In recent years, composite and recycled plastic battens have also entered the market, offering resistance to rot and insect damage where timber would traditionally need replacing after several decades.
- Timber battens: The standard choice, pressure treated to BS 5534 for durability
- Composite battens: Rot proof and consistent in dimension, useful in high moisture environments
- Counter battens: Fitted vertically beneath the horizontal battens on some roof constructions to create a ventilated air gap above the membrane
How Roof Batten Spacing Works
Batten spacing, known as the gauge, is calculated based on the specific tile or slate being used, since each product has a manufacturer specified maximum and minimum gauge to ensure correct overlap between courses. Getting this measurement wrong is one of the most common roofing faults, since incorrect gauge can leave gaps that let water in or waste material through excessive overlap.
Roofing Battens and Building Regulations
UK roof battens fitted since 2014 must comply with BS 5534, which sets minimum standards for batten strength, fixing methods, and wind resistance based on the roof’s location and exposure. This standard was introduced after research showed a significant number of roof failures during storms were linked to inadequate batten fixing rather than tile failure itself.
Signs of Roof Batten Failure
- Sagging or uneven tile lines visible from the ground
- Tiles slipping out of position more frequently than expected
- Soft or spongy feeling timber if accessible from the loft space, indicating rot
- Visible daylight or gaps between tiles that were not present when the roof was new
Batten failure is often only discovered once a re-roof begins and the existing tiles are stripped back, which is one of the reasons roofers recommend budgeting a contingency for a full re-roof, as covered in our new roof cost UK guide.
Roof Truss vs Roof Battens: What Is the Difference?
It is worth distinguishing between roof trusses and roof battens, since the terms are sometimes confused. Roof trusses are the main structural triangular frames that support the entire roof shape, spanning from wall to wall. Battens are a much smaller, secondary component fixed across the trusses or rafters, providing the direct fixing surface for tiles or slates.
Roof Batten Sizes and Specification
| Component | Typical Size | Purpose |
|---|---|---|
| Standard batten | 25mm x 50mm or 38mm x 25mm | Tile fixing, horizontal |
| Counter batten | 25mm x 38mm | Ventilation gap, vertical |
| Reinforced batten | 25mm x 50mm treated | High exposure sites, coastal areas |
Exact specification should always be confirmed against the tile manufacturer’s fixing instructions and the relevant British Standard for your roof’s wind exposure zone.
Replacing Roof Battens During a Re-Roof
Whenever a roof is stripped back to the deck for a full re-roof, it is standard practice to replace all battens rather than reuse the originals, since the cost difference is minor compared to the labour already involved, and reused battens may have nail holes in the wrong position for new tile gauges.
Frequently Asked Questions
How long do roof battens last?
Properly treated timber battens typically last as long as the roof covering itself, usually 40 to 60 years, provided the roof remains watertight and battens are not exposed to persistent damp.
Do roof battens need to be treated?
Yes, UK roof battens should be pressure treated to resist rot and insect damage, and compliant battens will carry a BS 5534 marking confirming this treatment.
Can you fit new tiles onto old battens?
It is possible if the existing battens are sound and correctly spaced for the new tile profile, but most roofers recommend replacing battens during any full re-roof given the relatively low additional cost.
What causes roof battens to fail?
The most common causes are long term water ingress from a failed membrane above, poor quality or untreated timber, and incorrect fixing that does not meet current wind resistance standards.
Are plastic roof battens as good as timber?
Composite and recycled plastic battens offer excellent rot resistance and consistent dimensions, though they are a newer product with a shorter track record than the many decades of performance data available for treated timber.
Expert Insight
Roofing surveyors report that batten failure is frequently misdiagnosed as a tile problem, since slipped or displaced tiles are the visible symptom even when the underlying cause is a failed or rotten batten beneath. A proper roof survey should always check batten condition, not just the tile surface, when investigating recurring tile slippage.
Final Thoughts
Roof battens are a small but critical part of any pitched roof, providing the fixing surface that keeps tiles secure against wind and weather. Correct spacing, BS 5534 compliant materials, and replacement during any full re-roof all help ensure the roof covering performs as designed for its full expected lifespan.
Getting quotes for re-roofing work? Ask whether battens are included as standard in the quoted price, since this is sometimes listed as an optional extra by less thorough contractors.
