Cavity Wall Insulation: Complete Guide

Quick Answer: What Is Cavity Wall Insulation and Is Your Home Suitable?

Cavity wall insulation fills the gap between the inner and outer walls of a property with an insulating material, reducing heat loss through the walls, which typically account for around a third of a home’s total heat loss. It suits properties built after around 1920 with a genuine cavity wall construction, and installation typically costs £500 to £1,500 depending on property size.

How Do You Know If You Have Cavity Walls?

Homes built from the 1920s onward in the UK are often constructed with cavity walls, consisting of two layers of brick or block with a gap between them, as opposed to older solid wall construction. A simple way to check is examining the brick pattern: cavity walls typically show a regular, uniform brick pattern (stretcher bond), while solid walls often show a mix of brick orientations. A professional survey can confirm cavity wall presence and current condition with certainty before any installation.

Types of Cavity Wall Insulation

Mineral Wool (Blown Fibre)

Mineral wool fibres are blown into the cavity through small holes drilled in the external wall, filling the gap evenly and offering good thermal performance at a moderate cost.

Polystyrene Beads

Small polystyrene beads, often bonded with an adhesive as they are injected, fill the cavity and offer good moisture resistance alongside solid thermal performance.

Polyurethane Foam

Foam insulation expands to fill the cavity completely, offering strong thermal performance, though it is less commonly used than the other two methods in typical UK domestic installations.

Cavity Wall Insulation Installation Process

A professional surveyor assesses your property to confirm cavity wall suitability and current condition
Small holes, typically around 22mm, are drilled into the external wall mortar joints at intervals
Insulation material is injected or blown into the cavity through these holes
Holes are filled and colour matched to blend with the existing brickwork
The whole process typically takes half a day to a full day for an average semi-detached property

Cost and Savings From Cavity Wall Insulation

Property Type	Typical Installation Cost	Estimated Annual Saving
Detached house	£1,000 to £1,500	£200 to £300
Semi-detached house	£600 to £1,000	£120 to £200
Terraced house	£400 to £700	£80 to £150

These figures are general estimates. Actual savings depend on your current wall condition, heating patterns, and energy costs at the time.

When Cavity Wall Insulation Is Not Suitable

Properties with solid wall construction rather than a genuine cavity, common in homes built before the 1920s
Walls exposed to significant driving rain without adequate weatherproofing, where insulation could increase damp penetration risk
Cavities already containing debris, damage, or previous unsuccessful insulation that would need removing first
Some coastal or exposed locations where a full technical assessment is needed before proceeding

Cavity Wall Insulation and Damp: What You Need to Know

A poorly assessed or badly installed cavity wall insulation job can occasionally contribute to damp problems, particularly in exposed locations with significant wind-driven rain. This is why a proper technical survey before installation, carried out by an accredited installer, is essential rather than optional, and why choosing an installer registered with a recognised body such as CIGA (Cavity Insulation Guarantee Agency) matters for both quality assurance and warranty protection.

Guarantees and Accreditation

Reputable cavity wall insulation installers provide an independent guarantee, commonly through CIGA, covering the insulation for a substantial period, often 25 years. Checking for this guarantee, rather than relying solely on the installer’s own warranty, provides additional protection and reassurance.

Frequently Asked Questions

How long does cavity wall insulation last?

Properly installed cavity wall insulation typically lasts for the lifetime of the property, often guaranteed for 25 years through schemes like CIGA, without needing replacement.

Can cavity wall insulation cause damp?

Correctly assessed and installed insulation in a suitable property rarely causes damp, but poor assessment or installation in an unsuitable or highly exposed property can occasionally contribute to moisture problems, which is why professional survey and accredited installation matter.

How do I know if my cavity wall insulation has failed?

Signs can include patchy cold spots on internal walls, increased heating bills without other explanation, or visible damp patches, and a specialist survey can confirm whether existing insulation has settled, degraded, or has installation gaps.

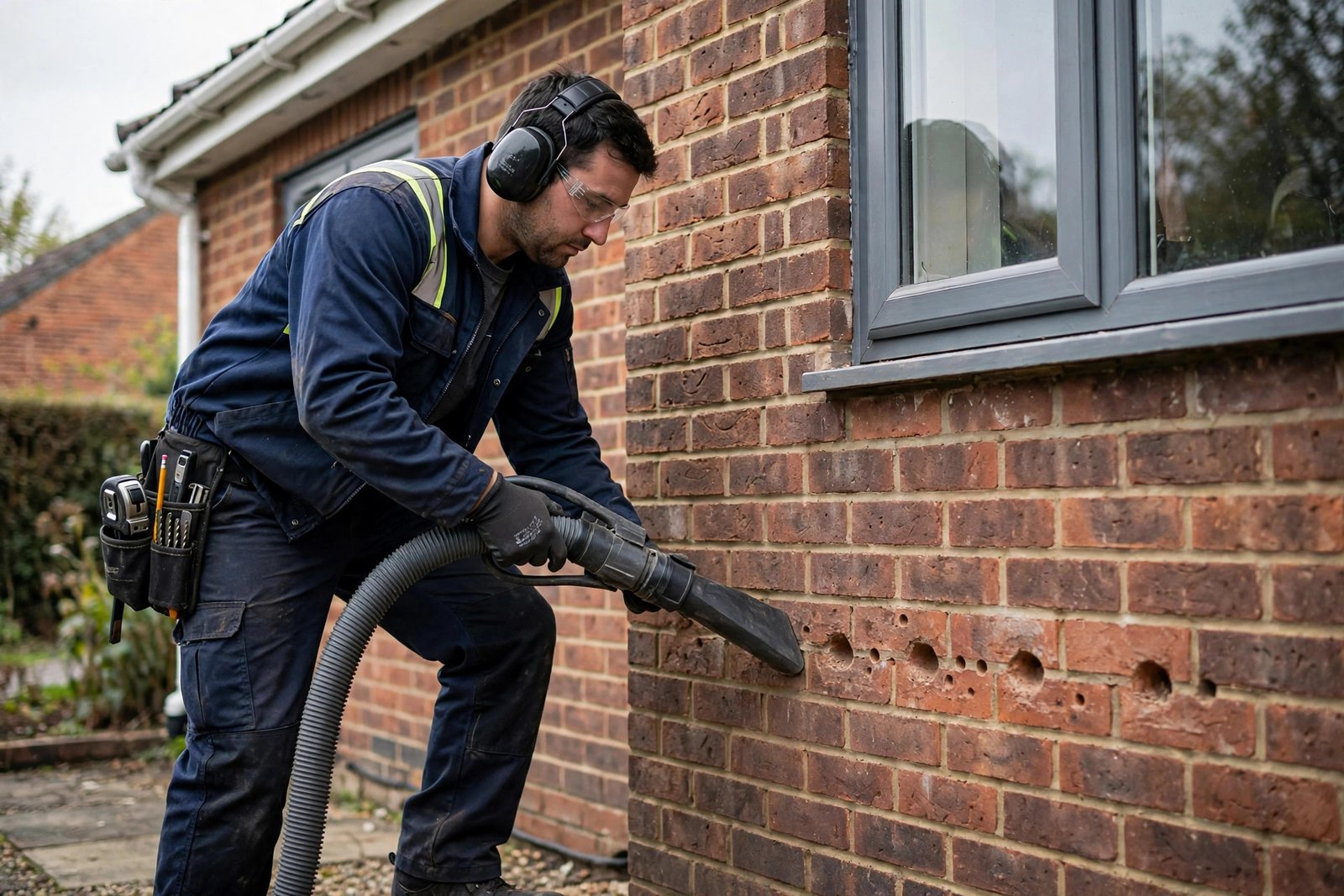

Can cavity wall insulation be removed?

Yes, if insulation is found to be causing problems or was installed in an unsuitable property, it can be professionally extracted, though this is a specialist job requiring an experienced contractor.

Is cavity wall insulation worth it for an older property?

This depends entirely on whether the property has a genuine, suitable cavity wall construction, which a professional survey should confirm before proceeding, since installation in an unsuitable solid wall property is not possible or appropriate.

Expert Insight

Energy efficiency assessors consistently highlight that a proper pre-installation survey, rather than installation cost alone, is the biggest factor separating a successful cavity wall insulation project from one that later causes problems, reinforcing the importance of choosing an accredited, thorough installer over the cheapest available quote.

Final Thoughts

Cavity wall insulation offers strong energy saving potential for suitable properties, but getting a proper technical survey before installation is essential to avoid the moisture-related problems that can occur in unsuitable or poorly assessed properties. Choosing an accredited installer with a recognised guarantee protects your investment for decades to come.

Considering cavity wall insulation? Insist on a proper technical survey before committing, and confirm the installer provides an independent guarantee such as CIGA rather than relying solely on their own warranty terms.
